Description:

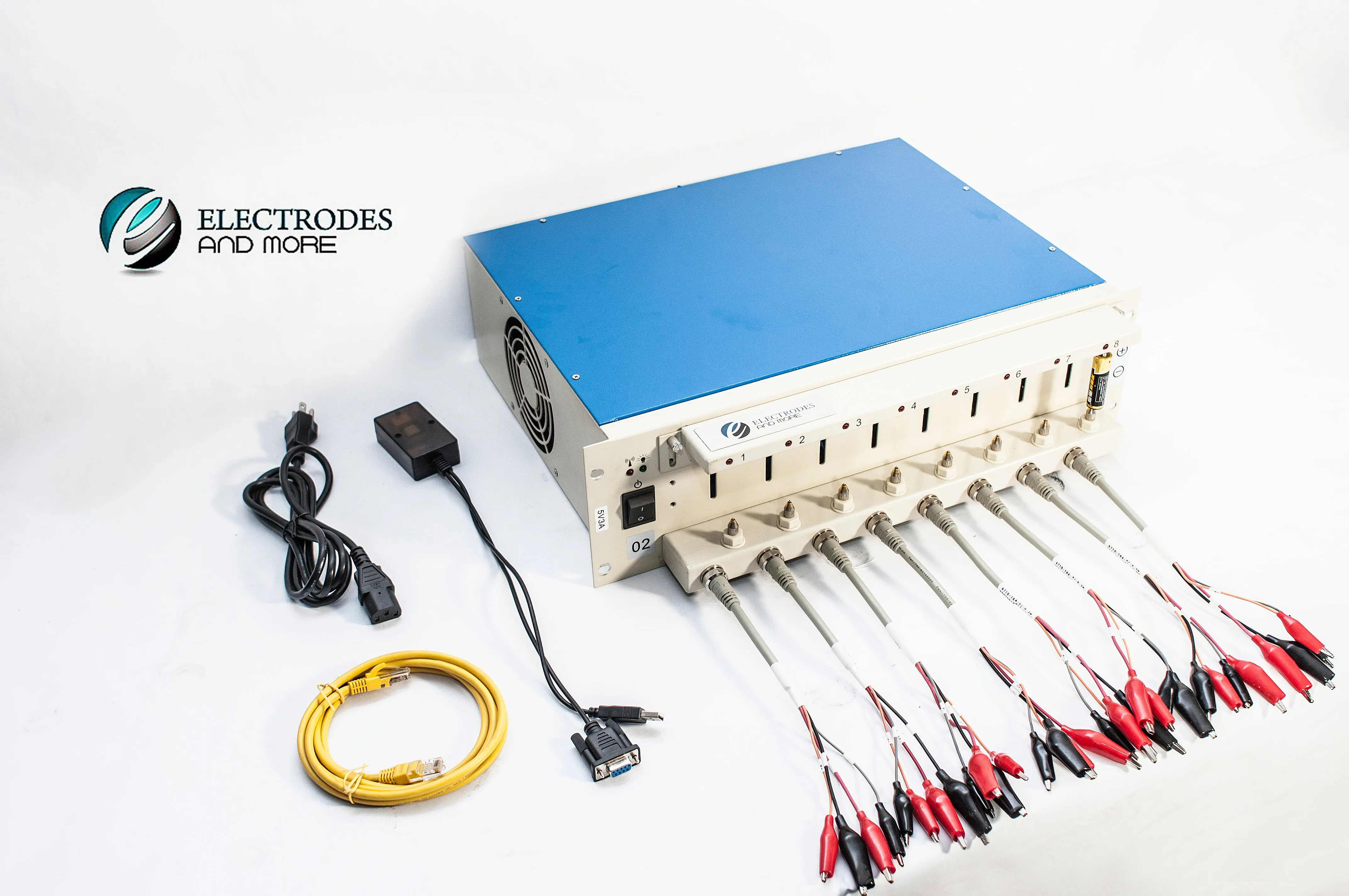

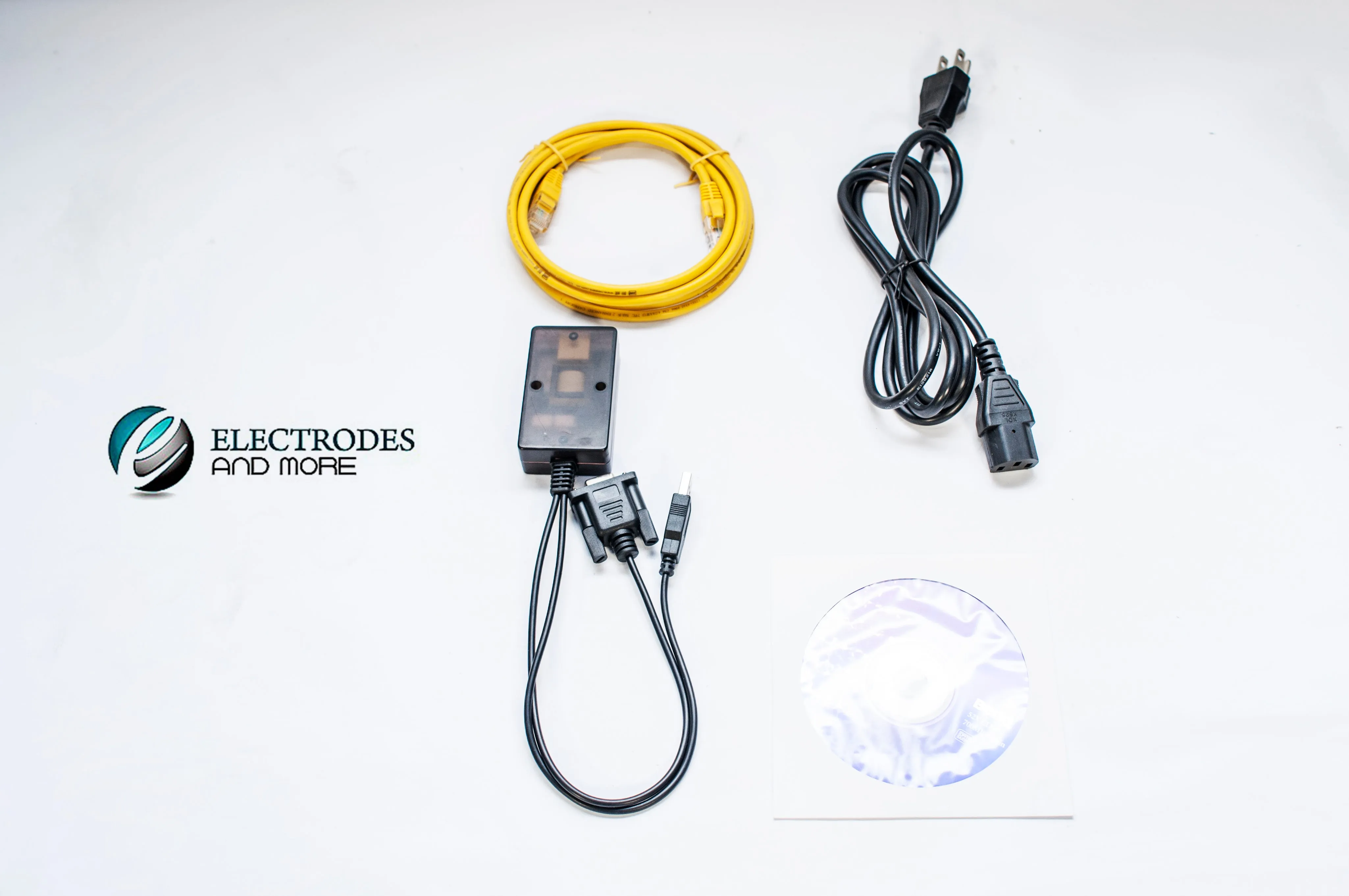

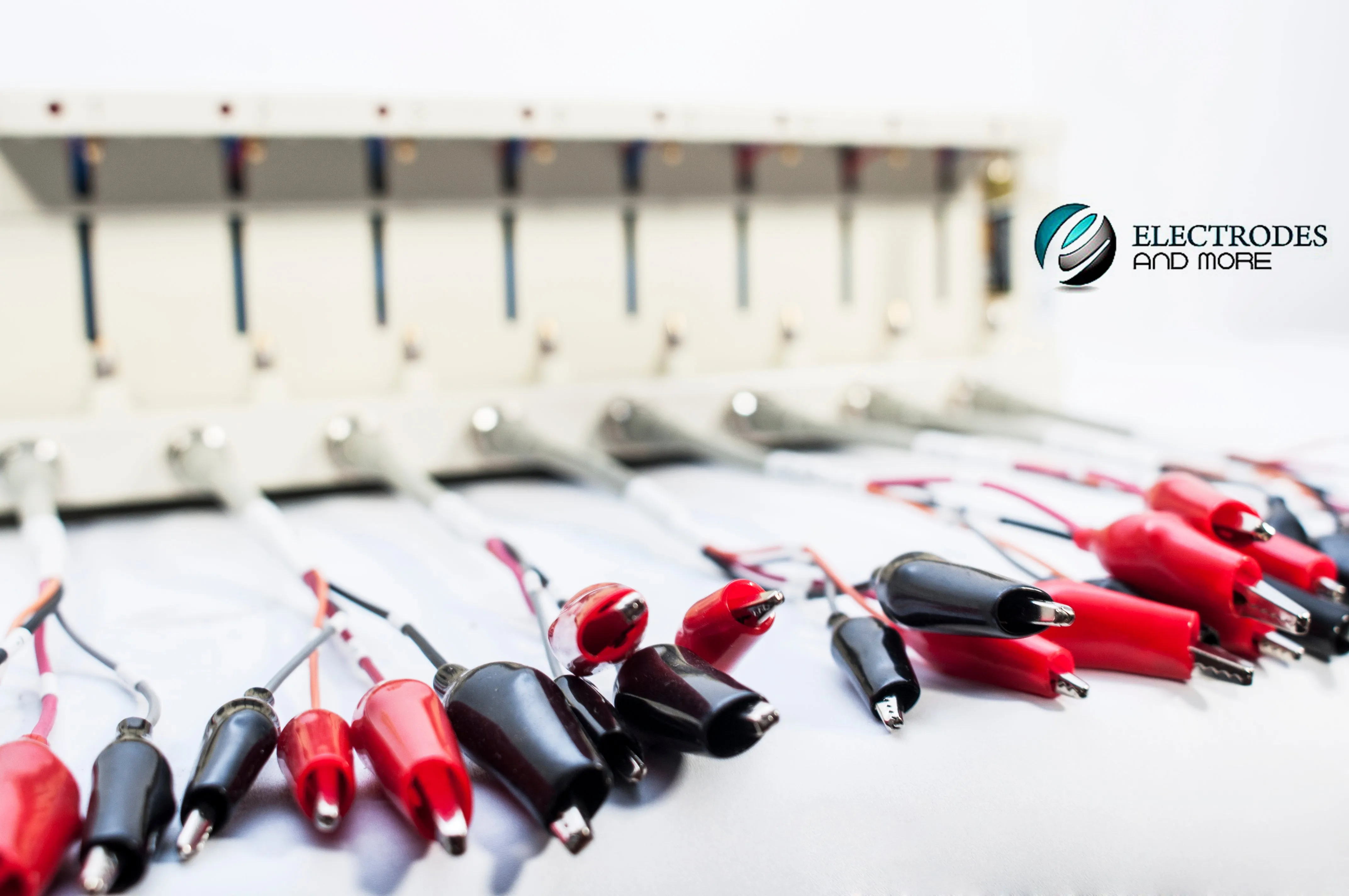

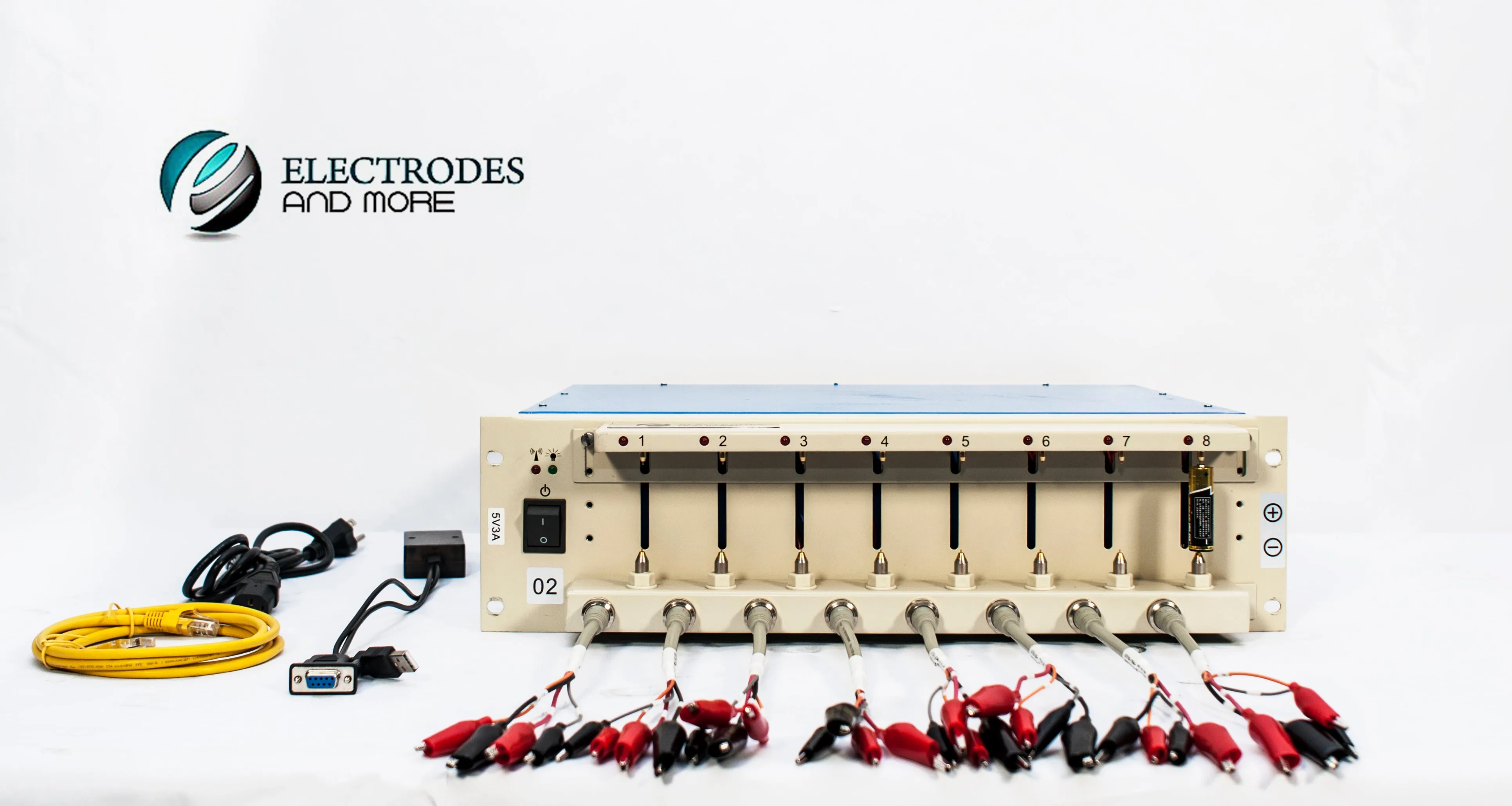

EQ-8CBC-5VP1-10mA-110 is an eight channel battery analyzer/cycler. Also included are eight cable sets for cells for connecting and collecting data easily. Each channel is capable of cycling up to from 6 to 3000 mAmps accurately. This unit is ideal for medium capacity cells where the maximum discharge current is not more than 3000mA. All eight channels can be independently programmable for the given voltage and current range. This model is ideal for pouch cells and cylindrical cells with discharge current not exceeding 3000mA. The software makes data collection and plotting various parameters easy and convenient.
Specifications:
- Input votlage: 110 V
- Single Phase
- Power: 200W
- Current Range 6 - 3000 mA
- Voltage Range: 0-5V
- Time interval: 1-900seconds
- Maximum number of Cycles: 9999
- Dimension: (24.5 x 19.7 x 6) cm
- Number of Channels: 8
- Optional 220V model available
- Optional laptop with pre-installed software is available.
